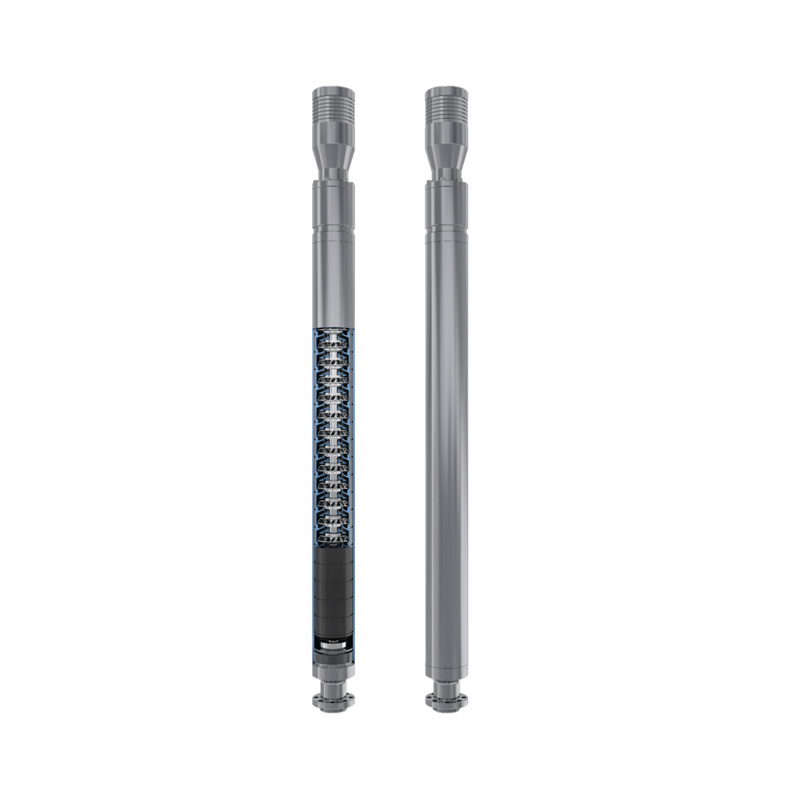

The HESFLO submersible centrifugal pump is the primary working component of the Electric Submersible Pump (ESP) system, providing the essential hydraulic power to lift wellbore fluids to the surface through its multi-stage centrifugal impellers. Our pump series covers a wide range of outer diameters (OD) from 86mm (3.38″) to 172mm (6.75″), catering to diverse production needs from low- to high-capacity wells.
To accommodate various complex well conditions, we offer multiple stage designs, including All-Floater, Bottom-Floater, and All-Compression configurations for optimal lifting efficiency and operational stability. Furthermore, for harsh environments with high corrosion or high sand content, special Anti-Corrosion and Abrasion-Resistant material options are available, ensuring long-term reliability and durability under any challenge.

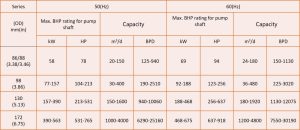

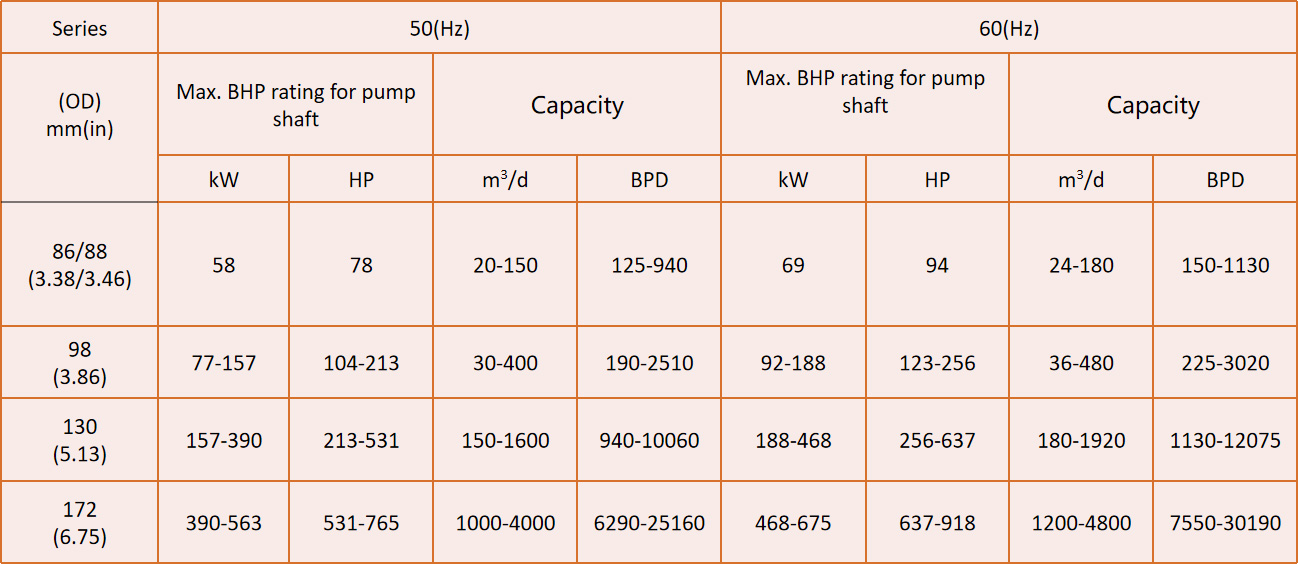

Key Specifications:
- Capacity Range: 20 – 4800 m³/d (approx. 125 – 30,190 BPD) @ 50Hz
- Max. Shaft Power: Up to 563 kW (765 HP) @ 50Hz
- OD Series: 86mm, 98mm, 130mm, 172mm
- Stage Designs: All-Floater, Bottom-Floater, All-Compression
- Available Categories: Standard, Anti-Corrosion, Abrasion-Resistant
